Cold War Gamer

Andy

Artillery units are a critical component of any Soviet force and whilst less flexible in terms of coordination of fire and OPs than their western counter parts this was less of a problem than might be imagined as it was nearly always available in overwhelming quantity. In order to play Soviets effectively you do need a reasonable number of guns and even in the late Cold War period these can routinely deploy in the direct fire role, so unlike western units could be a component of the on board force. In developing my views on the Soviet Breakthrough capability, I refined the Soviet Artillery Orbats for our adaption of the Rapid Fire rules and have been busy collecting models ever since. The first of the units to reach a completed state was the 2S1 battalion shown below.

At a representative model scale the battalion offers a few challenges as the organisation evolved over the period from 3 Batteries of 6 Guns to 3 Batteries of 8. This was a component of the Soviet response to NATO's mass proliferation of ATGWs and hand held anti tank weapons which the Soviets quickly realised would severely disrupt their operational tempo in the absence of weapons of mass destruction. As a consequence they focused on improving conventional artillery effects through maximising the weight of fire that could be delivered over short time periods to destructive effect. This was achieved through both the increased battery size and shifting to the battalion as the primary unit of fire. Having said that the upgraded capability had not been fully deployed across units in the Western TVD or even the forward groups of forces by the end of the Cold War.

After a deal of consideration around how to represent the 24 gun battalion, I plumped for the easy option and stuck with 3 batteries of 6 guns each represented by a couple of 2S1. 2S1 is the primary combat component of the battalion but at the level of representation chosen only equates to around 50% of the vehicles in the model battalion. I have used the S&S 2S1 for all my vehicles its a simple robust wargames model and a reasonable representation of the vehicle that paints up well. The only alternative that I am aware of is the ACE model which holds the distinction of being the only model from that company that I started but never finished, not an easy build.

As well as the Guns in each battery I also wanted to represent a reasonable number of Command and Observation Post vehicles which introduced the next challenge. I was keen to have a standardised battery organisation but the maximum number of OPs that a unit could deploy were around 6-7 so two vehicles at a scale of 1:3. The solution to this was the radio truck required by the WW2 rules, in this case a plumped for a BTR-60R-145M or BTR 60PU which was used extensively in unit headquarters. The remainder of the vehicles would then be deployable COPs using MT-LBus or ACRVs.

The ACRVs I have used here are from Cromwell and are very nice 1/76 scale wagons that look all right along side there 1/72 cousins. Sadly the vehicle is now OOP so my future battalions will largely be relying on the S&S version which is a somewhat simpler model. The vehicles have been stowed using green stuff or Goffy stowage items and are crewed by either Wee Friends or Elheim Soviet crew.

When I started this project the options for BTR 60's were limited to either Liberation which are a little under scale or the Hobby Den's both are resin and white metal kits. The representation is based on a simple conversion using plastic rod, plastic strip, brass rod and green stuff. Like the ACRVs and unusually for soviet vehicles these are often quite heavily stowed. The Crewman in this case is provide by Elhiem. Since building this S Models have now released a plastic BTR-60 and S&S have produced a nice little conversion kit for the Command variant, so making life easier for the next few iterations.

The final component in the battery is a truck either a Zil 131 or a Ural 4320, after making a lot of the ICM kits I have started to use a number of the Amercom Zil 131 ready mades no effort to build although painting over the all white UN schemes can be a challenge and quite time consuming of itself. The one shown here is an Amercom Zil 131.

So I intend for each battalion to comprise of 3 batteries and at the moment I am not representing the BHQ, primarily as a cost saving measure. The paint schemes are outlined in the review posts below and the markings come from a variety of sources, the regimental symbol is from the large model collect decal sheet and the numbers either from their or the QRF white numbers sheet, The markings on the truck doors are all from the decal sheets provided with the ICM kits. Hopefully the first of a number of Artillery battalions that will be working their way into the collection.

Related Posts:

ORBAT - 1980's Soviet MRR and TRR, Part 4 Artillery
ORBAT-Soviet Late 80's Breakthrough Capability, Part 3 Non Divisional Artillery Assets
ORBAT - Soviet Divisional Units, Part 2 MRD Artillery Regiment

TTP -Soviet Breakthrough Attacks
TTP - Soviet Advanced Guard and March Security
Wargames Unit - Soviet MRR, Regimental Artillery Group

Andy

In my youth I was always a great fan of Wargames Illustrated enjoying the pictures as much as the articles. Having supplied some pictures for a Cold War article in this months issue which takes as its theme the concept of "What If" games they kindly sent me a copy.

This months issue builds to an extent on Issue 324s Cold War theme but with a slightly different take hopefully this will be but part of an increased level of coverage of the post war modern period generally and more specificaly the Cold War. Cold War as a period has been slowly gaining in popularity in both 15mm and 20mm with an expanding range of figures and models from a range of manufacturers and a widening range of rules suitable for gaming the period including such titles as Force on Force, Fist Full of Tows (2 or 3), Battlegroup and Cold War Commander amongst others, these provide focus across the scales from the more traditional Modern gaming scale of 6mm to 15mm, 20mm and 28mm.

The imminent entry of Flames of War into the 15mm Cold War Gameing arena with it's Team Yankee rule set and a developing line of miniatures is inevitably driving an increased amount of interest in the period and with new sets of rules in the pipeline from TFL, Iron Fist publications and Third Generation Warfare the heat is seriously being turned up on the Cold War. The Flames of War gang have already published a range of images on their impending offerings covered on the Breakthrough Assault Blog and the release rate from other 15mm manufacturers seems to be cranking up to meet the inevitable demand.

This months WI issue contains three articles focused on Cold War Conflict two fitting in with the "What If" theme and one on the design of the Third Generation Warfare rule set by Nick Ayres that underpined the Leicester Phat Cats Salute demonstration and is accompanied by some pics of that game.

The other two articles are focused on the magazines What If theme one looks at Soviet Regimental Cold War Tactics the other is an excellent look at Opperation Mikado the proposed SAS raid onto the Argentinian Mainland in the flaklands war.

The Cold War article penned by Jeremy Richardson has a focus on the Advanced Guard, and scenario development from that as well as covering the sequencing of assault river crossings and Air Assault. It talks through the Joy of 3mm gaming and takes a look at Cold War Commanders mechanisms for simulating the friction of war (one of the great features in that set of rules). It closes around a look at model availability from 3mm - 20mm and approaches to dealing with the larger scales all up an eminiently readible and useful article with some great eye candy.

The second article is written by Roger Gerrish with contributions on the modelling front by Phil Lewis. The article covers in a degree of detail the historical background to the proposed SAS raid on mainland Argentina during the Falklands war, the historical content being quite fascinating of itself. It then looks at scenario development and forces for both sides for a series of Force on Force games looking at differnt aspects of the plan and rounds out with a look at terrain and creating the Pink Panthers or Green Hornets of the SAS all up a very enjoyable read.

The ideas from this article will readily translate to a few central front games I am contemplating as I have recently been looking at strategic Desant operations including Spetznaz deployments and airfield siezures in Northern Germany to which many of the ideas presented by Roger readily map. I might need to swap the Herc for an AN 24 and the Green Hornet landrovers for some Lu-947 weapon carriers, however the concepts presented for terrain and scenario generation would work well in creating a series of skirmish games around the initial airfield seizure befor I air land the air mechanised VDV regiment and conduct some subsequent operations, which is more the scale I like to play at.

All up an excellent edition building on the October 2014 Cold War issue reviewed by Richard C over at Cold War Hot Hot Hot. The WI Issues with Modern Themes are:

WI 335 What If
WI 324 Cold War
WI 312 6 Day War

Andy

The Web site, Soviet Armed Forces 1945 - 1991 offers a view of the Soviet Armed Forces from 1945 to 1991 for a range of Soviet Armed Forces. Under each of the force areas it organises its data to look at the various sub components and provide an overview of the source material used, most of this would appear to be Russian. The principal areas of the armed forces covered are:

So under Air Force it lists all the Soviet Air Armies and under each lists the units under command and their locations. Likewise for the Army it lists the Armies although organisational information is not currently available for all, it is for a majority. The information is organised from a number of perspectives and the site provides a number of ways to traverse the data and find the information being sought. Views are provided for each of the principal arms of service so you can also review by Tank Divisions, Motor Rifle Division, Fortified Areas orArtillery Divisions amongst others or you can drill down through the isted armies.

For the Army a range of sources are quoted the site data seems heavily underpinned by a number of Feskovs works and CFE data. Information provided includes activation and deactivation dates, base locations and major equipments where available. Much of this is CFE data so drawn from the back end of the Cold War. The more traditional Orbat, which units belonged to which divisions covers the whole of the period specified, at least for the Army. The Site scope is broad and is still a work in progress.

Having tried to translate with google a number of the reference documents some one trying too publish this data in english is a bit of a godsend. It will be interesting to see how the site develops but it is already looking like a bit of a treasure trove.

Related Web Resources:

Review-Web Resources, Voroshilov Academy Lectures
Review-Web Resources, The Essentials of Cold War Soviet Doctrine and Organisation for Free

Andy

The T-72 is another of those Cold War Icons, Globally exported its been involved in most of the worlds major conflicts since it appeared on the scene in the late 1960's. It was the Soviet Unions low cost alternative to the T-64 and T-80 series, equipping units outside of the technology challenging Central front area although it was the main stay of Soviet units in the Central group of Forces in Czecheslovakia. Other than that it was mostly found in the Western Military districts of the Soviet Union or exported across the middle east.

The T-72B comenced production in 1985 and introduced levels of protection that exceeded those of both the T-64 and T-80 making it the best protected of the Soviet tanks. The other major capability introduced on this version was the AT-11 Svir missile. The model includes the Kontakt 1 ERA which was available from 1982, first mounted on tanks in 1983, first identified by NATO in 1984 and fitted to the T-72B from 1988. It is worth speculating on weather it would have been rolled out earlier if East West relationships had decended into crisis.

One of the major thrusts of Soviet organisational and equipment change over this period was the neutralisation of the NATO ATGW threat as the the density of Anti Tank weapons had increased to a point where the Soviet Army felt that success was unlikly. This then drove their adoption of ERA and the significant increase in artillery systems over the period.

The improved armour provided the T-72B with base protection of 520mm RHA equivalent from APDS and 950mm RHA equivalent protection from HEAT, Kontakt 1 providing an additional 350mm - 400mm RHA equivalent against HEAT. Of interest the Improved TOW missile would penetrate 900mm RHA equivalent with TOW 2A delivered in 1987 doing 900mm behind ERA. I suspect it was not until the introduction of TOW2B in 1991 that the balance of advantage was restored to the ATGW. A Tandem war head for Milan did not arrive until 1993 so for a significant period the impact of the ATGW and LAW capability was reduced.

This review looks at the modelcollect T-72B although there are a variety of options on the market including

ACE
S&S
Hobby Den
Model Collect

The modelcollect kit like a lot of their armour kits is priced at around £11 and depending on when and how many you order may be shipped from China or their UK warehouse. Like the TOS-1 it is staggeringly well packaged with clear instructions.

The Hull is cast from white metal and is finly molded and adds a rather pleasing weight to the finished vehicle. The Tracks are flexible plastic but fit and fix easily using liquid poly. The remainder of the parts are Molded from plastic, the level of detail is generaly excellant and the quality of the molding is very good with only minor amounts of flash on one of the 4 models I built. Modelcollect are certainly approaching Revell standards if they are not quite there yet. No major issues with the build but a few minor ones as follows:

Turret fit to Hull
Fit of the front right Turret ERA (looking at the front)
Removal from Sprue and fitting of external fuel barrel supports

The Turret Hull fit is best sorted before you build the turret as trying to sort it once the turret is constructed is asking for a mishap. The problem stems from insufficient space between the base of the turret and the retaining lugs to accommodate the depth of the molding of the hull deck, a little light filling between the top of the lug and base of the turret soon removes the issue more radically you could just chop off the lugs.

I have yet to try this but separating the turret front right ERA block strip into probably 3 bits will result in a better fit.

Care is generally needed with the finer parts such as the commanders MG. The external fuel tank supports definitely fall into this category and need a bit of thinking about before removal. On the batch build I only lost one on the first vehicle I lost 50%. Fitting them to the hull rear also requires some work as the mounting lugs can be a little large.

Other than that it was a breeze with assembly taking a couple of hours. In contrast I have been building 3 ACE T-72Bs for at least 2 years :). Once constructed the vehicle looks the part and whilst I have seen nothing specific on this vehicle Alex Clark has made some very encouraging noises about a number of other models in the range.

Markings, Stowage and Damage.

The vehicles carry traditional Soviet numbers on the left, right and rear stowage bins and in some cases regimental identifying marks can also be found on the bins. The left and right turret bins are of different lengths so may need different approaches to accomodating the markings. Examples of markings used and available decal sets can be found here. The large model collect decal sheet which can be separately purchased contains a range of these.

Stowage can be seen in a number of immages and a canvas cover could also be worked for the cupola mounted HMG, a usefull strategy should you break it. I have seen images where the snorkle storage can be mounted up or down, in the down position it precludes the use of an identification number on the rear bins, not quite sure why I did that.

The modelcollect T-64 BV comes with an etched brass commanders screen which could also be deployed on the T-72. There are a variety of options to add vehicle damage around the side skirts and ERA packs immages also exist showing incomplete coverage of ERA blocks on the hull deck. Both provide a route for enhancing the models in your fleet. I have currently added regimental identifiers and vehicle numbers on the left and right stowage bins and have not included any additional stowage or famage on the first four vehicles.

Painting.

My painting style with the airbrush continues to evolve. On these beasts the lower hull tracks and underside were sprayed with black, then the whole was sprayed with Tamiya XF-13 JA Green ensuring that the lower hull is left a darker shade. The pannels were then sprayed with Tamiya XF-65 field gray. Then the detail was picked out using Vallejo Black Grey for the HMG, Sight blocks and IR searchlights and sky grey for driving lights. A pin wash was then applied using the Humbrol Black enamel wash and a blue grey filter applied to selected pannels and the skirts using diluted Humbrol Blue Grey enamel wash. The raised detail was drybrushed using a mix of Vallejo Russian Uniform and Buff.

Decals were then applied and the whole vehicle was matt varnished then weathered. Weathering involved spraying the road wheels and base of the skirts with Tamiya XF- Earth Brown before washing these areas with a dilute solution of Vajello Mahogany Sand. The front and rear hull and lower hull was then oversprayed with Tamiya XF- Dark Yellow, with a progressivly lighter application as you move up the sides and onto the hull top than sides.

The vehicle is based using laser cut mdf from East Riding miniatures this was painted dry brushed and covered with a variety of scatter material.

All up an excellent model, straight forward to assemble, quick to build and an excellent representation of the vehicle. Considerably easier than the ACE model and competativly priced against the alternatives.

References:

Books:

Jane's Armour and Artillery 2002/2003

Soviet/Russian Armour and Artillery Design Practice 1945 to Present
Weapons and Tactics of the Soviet Army, D Isby, 1988
T-72 Main Battle Tank 1974 - 1993, Osprey

Web:
Modelcollect @ Henk of Holland
On The Way Models, T-72 Model comparison
On The Way Models,Modelling The T-72 Family
Army Recognition T-72A datasheet
Army Recognition T-72 Overview Part 1
Army Recognition T-72 Overview Part 2
Alex Clarks Inspirational T-72B
Alex Clarks Inspirational T-72M1
Missing Lynx T-72B1 Thread

Other Posts of Interest:
Modelling - Cold War Soviet Vehical Markings and Decals
Review - Models 1/72, ACE T-72B
ORBAT - 1980's Soviet MRR and TRR, Part 1 Deployment and ORBAT
ORBAT - 1980's Soviet MRR and TRR, Part 2 Tank Change

Andy

The Soviet Army had well developed doctrine around march security and transition to battle formations from the line of march, this was critical to acheiving success in the encounter battles they postulated would be the most common form of engagement and in maintaining the rates of advance they envisioned. This is an area where a degree of task organisation would occur and provides a good framework for Scenario development for smaller games. The Advance guard is well documented across a variety of sources so it is straight forward to research, FM 100-2-1 is one of the best.

As an added bonus the Advanced Guard is a small self contained force that makes an excellent choice for a starter army. So an interesting vehicle for exploration of the organisation and processes associated with its operation. Its part of what most people would consider the classic Soviet steam roller and these elements rarely appeal to me, but for the reasons stated above and some interesting time and space problems associated with the relationship between the advanced guard and the main body that I think are less well understood its worth looking at.

The building blocks for creating the Advanced Guard are nearly all drawn from within the Motor Rifle Regiment or the Tank Regiment, details of their composition can be found in the post 1980s Soviet MRR and TRR, Part 1 deployment and Orbat, whilst details on equipment change, Engineer, Artillery support and the Anti Tank Reserve can be found in subsequent posts. The core element for the Advanced Guard is the Motor Rifle or Tank Battalion.

The Advanced Guard mission was to provide forward march security to the lead Regiment on an axis of advance, in the example we will look at here we will consider a MRR but a TR could equally be configured to fill this role. Unlike the Forward detachment the purpose was to provide warning and an initial raction force to deal with enemy encountered on route as the MRR moved down its axis of advance. The Advanced Guard was a key component in transitioning the Regiment effectivly from March Formation to Battle Formation. In contrast the forward detachment was tasked with specific missions to take and hold terrain constraints or block reserves, the unifying purpose of both organisations however was the same, in order to allow the MRR/MRD to advance along the line of march at speed.

March formations in the British army were used for out of contact manouver, where contact was expected then the unit would be configured to advance to contact, a battle formation for which the manouver speed would be much lower as this was a tacticle deployment. Reacting to contact from a march formation would be an emergency procedure and certainly in my experience was seldom discused or practiced, advance to contact was, so the British and Soviet doctrine is very different.

The MRB would be reinforced and task organised to acheive its mission the level of reinforcement would be dependent on a number of factors:

Weather the Regiment was on a main or subsiduary access
The type of offensive action being prosecuted

March
Pursuit
Meeting Engagement

Enemy Posture and Strength

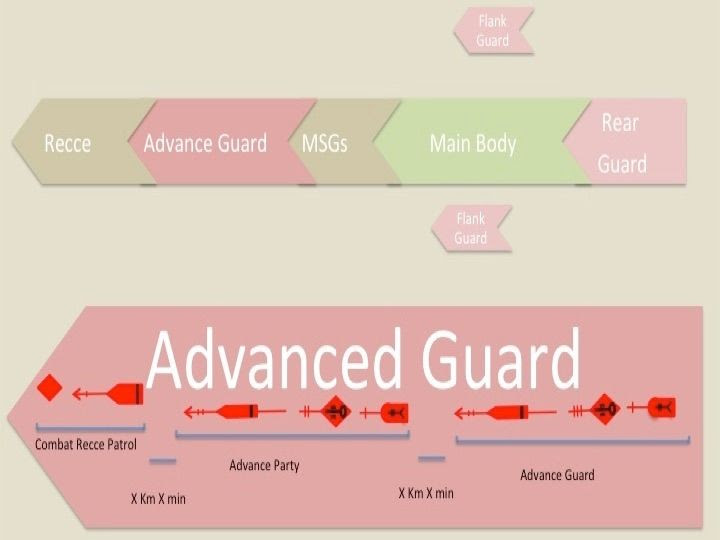

The Soviets adapted 2 Pre battle formations based on whether they expected to encounter the enemy or not. If encounter with the enemy was expected then march security elements would be deployed to front, flanks and rear of the main body. The Advanced Guard would deploy in three components on a single axis. These were:

The Combat Recce patrol of a platoon of Infantry and a single tank
The Advance Party, the remainder of the lead Company reinforced by a range of assets depending on the situation and what had been provided to the Advanced Guard these could include:

Morter Platoon, Morter Battery or Gun Battery, 120mm Mortar or 2S1
AT Section or Platoon, BRDM2 +AT5
Engineer Section
Tank Platoon, depending on formation T-64, T-72, T-80 marks being dependent on year.

The Advance Guard Main Body, the remainder of the lead Motor Rifle Battalion and the remainder of the reinforcement units that could include:

Air Defence Platoon, ZSU 23-4 or SA-9 or 2S6 or BMP2 + SA14
Battery or Battalion of Guns, 2S1 or 2S3
Up to an AT Company,
Engineer Assets, relevant to the opperation

The Advance Guard could operate in close co-operation with a number of regimental assets which for scenarios involving the advanced guard could easily be included, these are:

The reinforced regimental Recce Company, reinforcement would come from engineer, chemical and artillery reconaisance assets
The Mobility Support Group which would be a task organised engineer group reinforced with infantry and armour from second echelon formations, with the primary role of clearing and breaching obsticles identified by the reconaisance elements.
Regimental Artillery Group, assets in range would provide supporting fires as directed by the Regimental commander in the event of contact. Command and Observation Posts might be grouped with the components of the guard to provide coverage
Regimental Headquaters, frequently the Regimental HQ might travel with or just to the rear of the Advanced Guard, equally the Battalion HQ might travel just to the rear of the Advance Party, I have not represented this in the force as presented here

Additionally interesting scenarios might be constructed around interaction with in place elements such as forward detachments. Passage of echelons might also be worthy of consideration although weather this would be done in march formation might be subject to situation and the proximety of remaining enemy.

Bearing in mind that I play based on Rapid fire the abstraction of the vehicles and personel used by this ruleset presents a number of challenges in representing these elements. Looking at it from front to back I have currently decided to represent the Advanced Guard and the associated regimental elements as follows:

Reinforced Regimental Recce Company

The purpose of the Regimental Recce Company was to gather intelligence and develop the information identified by other forward deployed asset such as the Divisional Recc battalion, it was not part of the Advanced Guard, it was key to identifying enemy and targets and can work well as part of a depth game.

I currently represent the regimental Recce Company with a BMP R as the HQ and a BRDM2 and a BMP platoon each represented by a vehicle. The organisation included a motorcycle section which is currently un represented. Reinforcement comes in the form of a single BRDM2 Rkh platoon from the Regimental Chemical defence Company, and assets from the Divisional Engineer recce elements in BTR 60 and a PRP 3 representing artillery reconnaissance elements from a reinforced RAG. I intend to operate these as three pairs each with a BMP and BRDM2/BTR60 in it.

The Advance Party.

The advanced party provided march security for the advanced guard and was in turn protected by a combat recce patrol that it would deploy forward. Depending on circumstances terrain and visibility it could work closely with the CRP providing support and overwatch, or stand off from the CRP to give greater reaction time. Distances between the two elements are quoted as between 1.5km and 5km depending on sources. On Contact the advanced party could block, strike or maneuver and strike depending on the size and disposition of the encountered force. The effects of these actions would be to fix or destroy the opposing forces lead elements.

The representation of the CRP is quite difficult given the Rapid fire approach to one APC to each company. Because the BMPs are very under represented my personal preference here is to add an additional BMP effectively with no dismounts, as a Recce element. Where CRPs are required to provide flank guards the same approach would be taken.

The remainder of the Advance Party includes;

A Tank platoon, represented by a single tank,
A MR Coy represented by a BMP 2 and the associated dismounts.
An ACRV Command and Observation Post(COP) from the battery or battalion attached to the parent MRB.
The MRBs Mortar Battery, represented by 2 MTLB and 2 120mm Mortar. These might also be grouped with the Advanced Guard Main Body.

The COP would be using the unit as protection and would be available to adjust fire to achieve the requested effect, if fires were allocated by the Combined Arms Commander at Battalion or Regimental level. This is somewhat different to western use of Observation Officers. If more artilery had been attached to the Advanced Guard this could equally be a Battery of 2S1. If deployed these might be used in a direct or indirect fire role.

Additional elements that could be represented include the Advanced Guard battalion commander who would move forward if contact was expected an AT Section or platoon and engineer elements. If your just starting out in Cold War this sort of force provides a great starter option with both vehicle variety and small size yet capable of realistic deployment in a number of scenarios,

The Advanced Guard Main Body.

The Advanced Guard Main Body is constituted from the remainder of the Advanced Guard and it provides march security for the lead regiment. Depending on circumstances distance between it and the advance party could be between 1.5km - 10km this seems to be dependent on whether the advanced party is supporting the CRP or stood off from it as the distance to the CRP seems to be a fairly consitant at 10km.

On contact it could block or strike and if striking would be highly likely to maneuver and strike in order to take an enemy in the flank. The purpose would be to destroy the lead enemy company and fix or destroy the lead enemy battle group.

The Advanced Guard MRB has been reinforced with a battery of guns, one AA Platoon from the regimental Air Defence Platoon, and a Platoon from the Regimental Anti Tank Company. It is missing those elements already detached to form the Advanced Party. The Battalion commander has grouped his own Air Defence Platoon with the ZSU 23-4 platoon.

and the Tank Company Headquaters tank has been grouped with the AT - Platoon to form a small Anti Tank reserve. This element would be used to counter unexpected enemy tank action, or screen open flanks. I am not convinced it would be formally committed as part of the immediate plan as that would leave no reserve.

Each of the MR Coys is grouped with a tank platoon and the unit also includes the battalion HQ which could deploy forward and the AGS 17 Direct fire support platoon. Close on the heels of the Advance Guard and located behind it in the order of march to deal swiftly with Engineering tasks identified by the Recce elements is a Maneuver Support Group based on components from the Regimental Engineer company together with some reinforcing elements. The Advanced Guard could also find itself closely followed by the tactical elements of the Regimental Headquaters and other assets such as a COP from the Artillery Battalion.

The ability or inability of Junior Commanders to react would be compensated for by the forward positioning of the more senior headquaters although this can lead to confusion over who is directing what. The doctrinal intent was for the senior headquaters to be in a position to rapidly assess the battle and deploy the follow on force elements rapidly and effectively.

The Maneuver Support Group

The Manouver Support Group was responsible within the MRR for the identification, clearance /breaching and marking of obstacles on the supported units route as well as the provision of route marking capability, the maintenance of the route and its own security. The detachment would include reconnaissance, security and engineer elements. MSGs could be formed from the Regiments own Engineer company or be provided from Divisional Engineer assets. The main purpose is to facilitate the Regiments movement rather than the Advance Guards.

The MSG covers three capability areas;

Route Clearance
Minefield Breaching
Small gap crossing

Route Clearance

The route clearance capability is represented by 1 T-72A with an MTU dozer blade 3 of which were held by the Engineer Company. The Platoon would be drawn from a 2nd Echelon element of the Regiment or Division.

Minefield Breaching

The mine field breaching capability is covered by the provision of KMT mine rollers which could be fitted to vehicles as required. In addition and provided from the Divisional Engineer Regiment is an MTK 2 explosive breaching vehicle, this capability was also available on a T-55 hull and a BTR 50 hull.

Gap Crossing Small

A Regiment held a mix of Truck mounted TMM and Tank mounted MT-55 or MTU Vheicle Launched Bridges. MRR would have a preponderance of the truck mounted systems whilst tank regiments would have more of the tank based systems, sadly no one makes a TMM in 1/72.

The remaining two elements can support any of the capabilities this was;

Infantry Company attached from a 2nd Echelon battalion to assist with route marking, security and provide additional manpower working under the guidance of the Sappers where needed .
Engineer Platoon mounted here in a BTR 60 PB could equally be transported in a truck and can enhance any of the three mobility support capabilities represented.

Having looked at the composition of the advanced guard and associated groups it is worth considering how it was designed to operate. The spacing of the components in the order of march provided time for early warning allowing commanders time to think and take action. To understand how this worked its necessary to understand a bit about the movement characteristics of vehicle columns and also to set it in the context of the Regimental order of march as this would drive what support it could expect and how quickly.

Speeds on the march varied but columns were expected to achieve the following rates of advance

Motor Transport on roads upto 40Km/h
Armor on Roads or X Country 25-30Km/hr
Under poor conditions Night or bad weather 20km/h
On foot 4-6km/h

Of more interest I think is distance per minute as this gives an indication at the time intervals between the different elements of the march groups. So at 25km/h you travel about 4km in 10min or 400m in 1 minute at 40Km/h you travel about 7Km in 10min or 700m in a minute.

In looking at this we also need to understand the lengths of the columns involved as they add to both the distances and the time taken to get an effective force to a point. Pass time of the column adds time to deployment, it is the amount of time it takes the column to pass a point which is a function of its length, difficult to start a war with one vehicle.

Vehicle Numbers for the Advanced Guard:

BMP Bn - 72 Vehicles including command and Echelon
2S1 Bty 15 Vehicles including command and Echelon,
2S1 Bn - 60 Vehicles including command and Echelon
Tank Coy 13 Vehicles
AT Platoon 5 Vehicles

so dependent on composition 105 to 150 vehicles

A Company Column of 10 vehicles with 25/50m between vehicles is 250 - 500m long and at 25km/h takes 1 minute from the first vehicle hitting a point to the last vehicle clearing that point. With no space between units the 105 vehicles of the advance guard covers 2.5 - 5km so a pass time of 6-12 minutes at 25km/h with no choas and no gaps between the different components. Given the distances between the various components of the Advance Guard are longer this all takes more time.

The references varies so a number of models for the spacing could be made, this one really serves to illustrates the point. The CRP is 5Km and 12.5 minutes ahead of the Advanced Party, which is composed of around 20 vehicles over 1km so a pass time of 2 minutes so about 15 minutes to bring the whole force into action. They in turn are 1.5 km and 3 minutes ahead of the Advance Guard which consistes of around 80 vehicles and a distance of 4km so a pass time of 10 minutes so they would take an additional 15 minutes to come into action if the manouver to a flank this increases by an additional 2 minutes for every Km of maneuver before they get into action. They are in turn 5-10km and another 15-20 minutes ahead of the main body around 300 vehicles around 15km so pass time is 30 minutes. If the enemy was weak or in a poor position the Soviet commander could commit units incrimentally to the battle if he wished, a suitable time table would need to be produced based on further analysis.

The impact of this is as follows:

CRP encounters enemy at H,
Advance party can hit them at H+ 15, + 2min for every additional Km of maneuver.
Advance Guard Main Body can hit at H+30 + 2min for every additional Km of maneuver
Regimental Main Body at H+75 + 1.5min + 2min for every additional Km

The order of march also affected available artillery support

2S1 had a range of 15.3km or 21.9 km using extended range munitions. 2S3 18.5km and 24km respectively. Based on the scenario presented above a 2S1 Battalion with the Regimental Main Body is:

21km from the CRP,
16km from the Advanced Party
13.5km from the Advanced Party Main Body

Given that they are at the front of the Regimental main Body which could be spread over 15km. The doctrine was for the Regimental Artillery group to be held well forward together with the regimental HQ in the order of March, the RHQ so it could deploy forward when contact was expected and for the Guns to be in range of the contact point and deployable quickly.

on CRP contact available artillery support is as follows:

in Range of the Advance Guards Guns and Mortars on contact, these would take time to deploy and come into action
in range of the Main Body's guns at extreme range, if deployed immediately this may put much of the ensuing action out of range, so keeping these moving until the advanced party is committed 15 minutes later puts them 5-7km closer to the action which probably makes sense. On top of this there is deployment time but for SPGs this should be short.
If the battle is moving in the direction of travel then the period for which the guns are available without displacing will also be affected although this is particularly difficult to represent on a 20mm table top battlefield.

All this becomes interesting on a number of counts which can be played out in games

Time Pressure is a key element, if you wish to manouver and retain the initiative time to plan will be short, probably around 7-10 minutes, the plan needs to be simple and this is where templated drills work well to my mind. Creating this time pressure in a game can be difficult ideas include the following:

Players might be restricted to this time limitation for planning followed by a fixed deployment time
Players might be given no specific planning time and fixed duration move times.
Players may only be given an overview map with a number of contact locations identified and no indicator of which will be played.
Players might be presented with an initial situation and troop deployment from which the game starts and fixed duration move times.

The arrival sequence, timing and grouping of the Soviet forces and the availability of fire support can be built in with variations available if the commander wishes to flank attack.
The relative directions of engagement, so whilst the CRP might contact from the front any of the other groups might hit from a flank.
A multi board game would enable the manouver to play this would be more effective with blinds but would tend to decrease the time pressure as more elapsed time would be needed to move the force elements.
Scenarios could be built against NATO formations expecting or not expecting contact.

References:

Books:

Weapons and Tactics of the Soviet Army, D Isby, 1988
Soviet Air Land Battle Tactics, WP Baxter, 1986
The Race to The Swift, R Simpkin, 1985
Red God of War, Bellamy, 1986
Offensive Operations, Sidorenko, 1970
The Warsaw Pact Arms Doctrine and Strategy

Internet:

Tactics the Soviet Way, Rechinko, 1984
FM 100-2-3 The Soviet Army Troops, Organisation and Equipment
FM 100-2-1 The Soviet Army Operations and Tactics
The Soviet Motor Rifle Battalion in the Meeting Engagement DTIC
Tactics of the Soviet Army Regiment DTIC
The Soviet Tank Battalion Tactics DIA
The Soviet Tank Company Tactics DIA
The Soviet Mortrorised Rifle Company DIA
The Soviet Motorised Rifle Battalion DIA

Other Posts of Interest:

Wargames Unit - Soviet Late 80's MRB
Wargames Unit - Soviet MRR, Anti Tank Reserve
ORBAT - 1980's Soviet MRR and TRR, Part 1 Deployment and ORBAT
ORBAT - 1980's Soviet MRR and TRR, Part 3 Engineers
ORBAT - 1980's Soviet MRR and TRR, Part 4 Artillery
TTP-Soviet Forward Detachments and Tactical Air Assault

Cold War Gamer

Tuesday, 22 December 2015

Wargames Unit - Soviet Late 80's 2S1 Battalion

Friday, 28 August 2015

Review - Magazine Wargames Illustrated 335 September 2015

Sunday, 2 August 2015

Review - Web Resources, Soviet Armed Forces 1945 - 1991

Wednesday, 29 July 2015

Review Model - model collect 1/72 T-72B with ERA

Saturday, 25 July 2015

TTP - The Soviet Advanced Guard and March Security
